| Features | Descriptions |
| Physical Features | |
| Dimensions | 76mm x 34,5mm x 71mm |
| Protection Class | IP65 at front, IP20 at rear |
| Installation | Fixed Installation |
| Storage Temperature | -30°C with +80°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (+%15) 50/60 Hz. 1.5 VA 115 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac/dc (-%15, +%10) 50/60 Hz. 1.5 VA 10-30 Vdc |
| Sensor Inputs | NTC, PTC, TC, RTD NTC (10k ohm @.25 °C) PTC(1000 ohm @.25 °C) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe CuNi 0°C…800°C NiCr 0°C…999°C PTC -50°C…150°C / -19,9°C…99.9°C NTC -50°C…100°C / -19,9°C…99.9°C PT 100 / PT 1000 -50°C…400°C / -19,9°C…99.9°C |
| Accuracy | ± 1 % of full scale for thermoresistance |
| Output | |
| Relay Output | 10A@250 Vac at resistive load |
| SSR Output | 15mA@12Vdc (Maximum) |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On / Off |
| Reading Frequency | 3 readings per second |
| Communication Protocols | RS-485 |
| Approvals | EAC, CE |

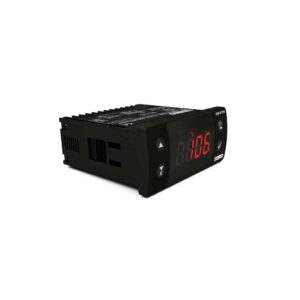

ESM-3711-HN
Digital ON/OFF Temperature Control Device With Buzzer
4 Digits display
User can select to start cooking time (Timer) when temperature
reaches to the set value
Adjustable temperature offset
Functional Internal Buzzer
ON / OFF temperature control
User can select to start Cooking Time
when Temperature reaches to the Set Value
PTC, NTC, PT-100, PT-1000 thermoresistances input types
Fe-Const (J), NiCr-Ni (K) thermocouples input types
Temperature Control Output and Alarm Output
Relay or SSR Driver Output
Remote access, data collecting and controlling
wiht Modbus RTU (Optional)
Installing parameters using Prokey (Optional)
