| Features | Descriptions |
| Physical Features | |
| Dimensions | 76mm x 34,5mm x 71mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage Temperature | -30°C to +80°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 24Vdc/ac ( ±%15) 50/60Hz – 1.5VA 24 V ac (±%15) 50/60 Hz. 1.5 VA 115 Vac (±%15) 50/60 Hz. 1.5 VA 230 Vac (±%15) 50/60 Hz. 1.5 VA 10-30Vdc 1.5W |
| Sensor Inputs | NTC, PTC, TC, RTD NTC (10k @.25 °C) PTC(1000 @.25 °C) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe-CuNi 0°C…800°C NiCr-Ni 0°C…999°C PT 100 -50°C…400°C / -19.9°C…99.9°C NTC -50°C…100°C / -50.0°C…100.0°C PTC -50°C…130°C / -50.0°C…130.0°C |
| Accuracy | ± % 1 of full scale |
| Output | |
| Relay Output | 16(8)A@250 Vac at resistive load |
| SSR Output | Maximum 20mA, Maximum 17Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off |
| Reading Frequency | 3 readings per second |
| Communication Protocols | RS-485, Prokey Programming Module |
| Approvals | EAC, CE |

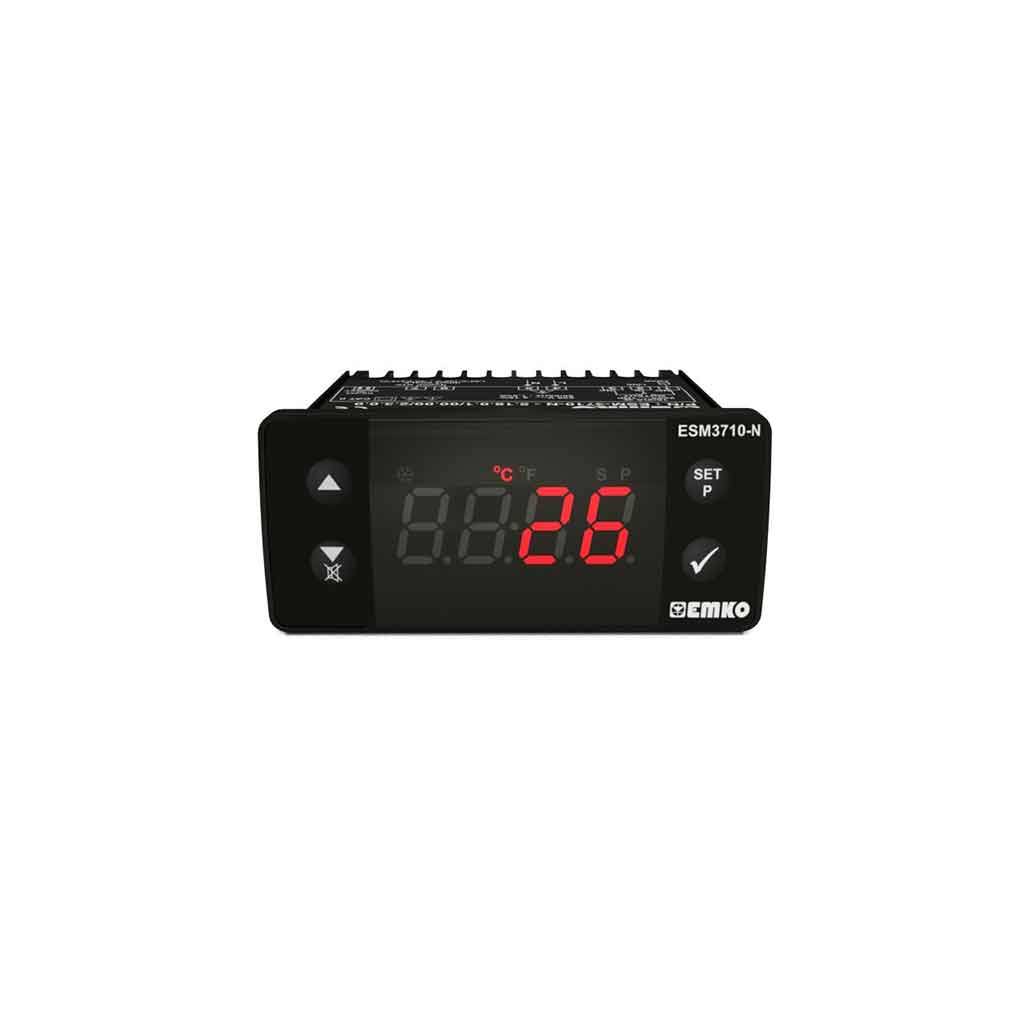

ESM-3710-N
Digital ON/OFF Temperature Control Device
Installing parameters using Prokey
Password protection for programming section
Adjustable internal buzzer according to
sensor defect status
4 Digits Display
NTC Input or PTC Input or
J type thermocouple Input or Ktype
thermocouple Input or
2-Wire PT-100 Input ori 2-Wire PT-1000 Input
(Must be determined in order.)
Adjustable temperature offset
ON/OFF temperature control
Selectable heating or cooling function
Remote acces, data collecting and controlling
with Modbus RTU (Optional)
