Power supply voltage range, V | 9 / 45 |
Maximal current consumption at supply voltage 12/24 V, mA, not more than | 100 / 50 |
Temperature range, °C | -10 … +60 |
Ingress protection rating | IP40 |
LCD display | 128×64 monochrome, with automatic light adjustment |
Electromagnetic compatibility | ESD Protection, severity level II; Electromagnetic interference protection, severity level IV. |
CAN bus display

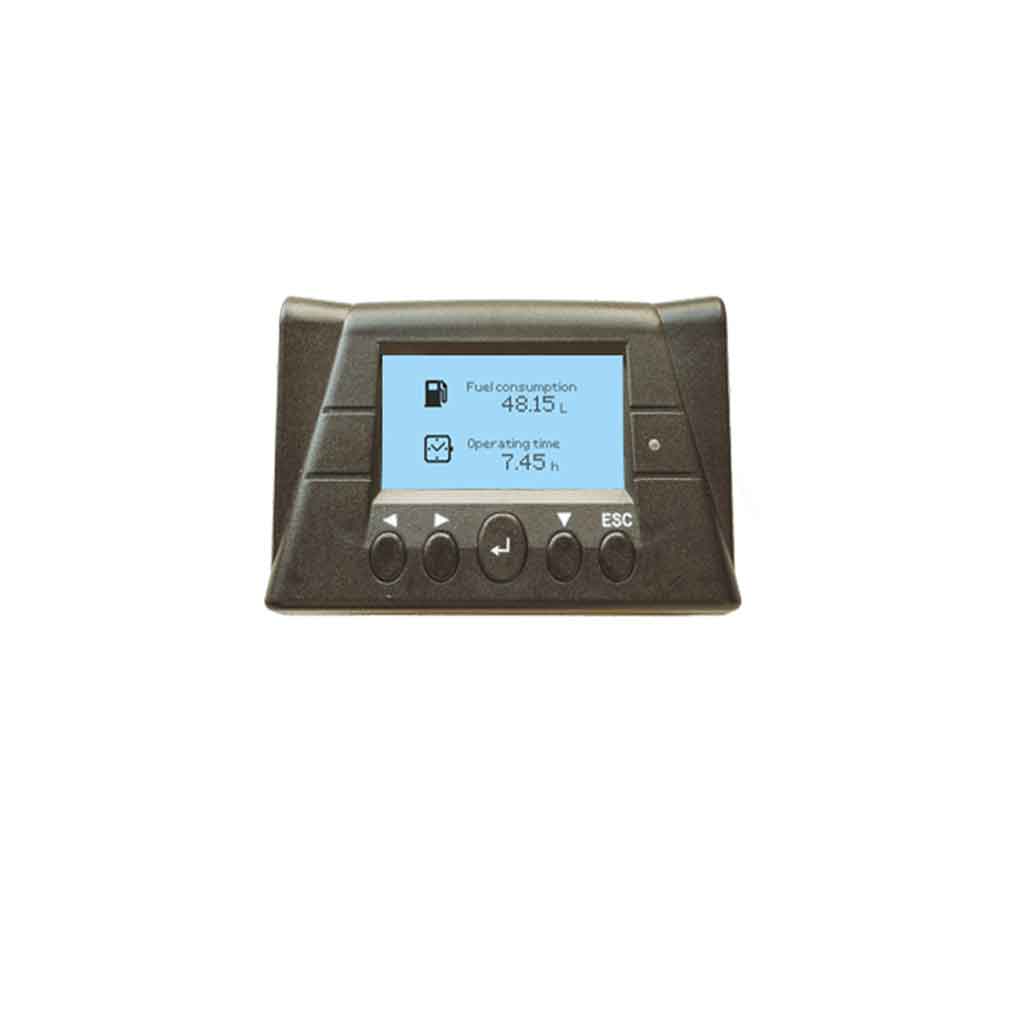

MasterCAN Display 35 – CAN bus display / HMI device designed for displaying CAN J1939 parameters and data from additional fuel level sensors, fuel flow meters, axle load sensors and other peripheral units used in vehicle telematics systems or stationary machinery monitoring system.

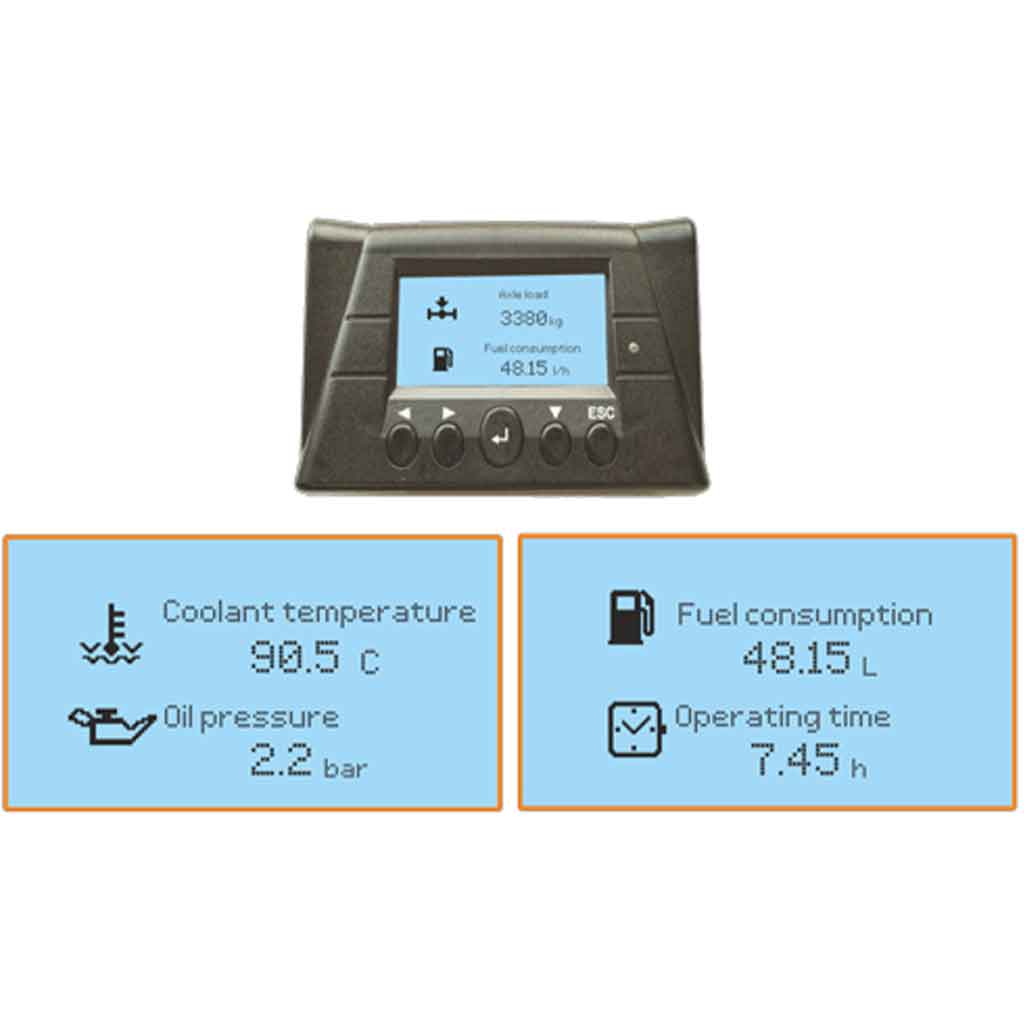

Parameters shown on the screen of CAN bus display can be selected from S6 database containing over 10,000 SPN (parameters) of machinery operation, used in CAN J1939, ISOBUS and CAN j1939/S6 Telematics Interface.
