| Features | Descriptions |
| LCD Languages | English, Turkish |
| Inputs | 13x Configurable digital, 4x resistive configurable input, Magnetic Pickup, Charge Alternator D+(WL) inputs |
| Outputs | Configurable 2x Relays, 7x Transistors, GBR outputs |
| Current Measurement | 3 phases CT inputs for Load Current, 1x CT input for Earth Current 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics. |
| Voltage Measurement | 3 phase mains, 3 phase generator 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics. |
| Case | |
| Dimensions | 276 mm x 189 mm x 45 mm. |
| Protection Class | IP65 at front side |
| Operating Range | |
| DC Battery Supply range | 8 to 32Vdc, max.operating current is 860mA |
| Sender Measurement | 0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm |
| Cabin.Temp.Measuremet | |
| Operating / Storage Temp. | -20°C with +70°C / -40°C with +80°C |
| Expansions | |
| Internal | USB programming and communication port, Ethernet, RS485 |
| GPRS | Optional |
| Embedded WEB server | Optional |
| Serial ModBus | |
| Approvals | CE, GOST-R |

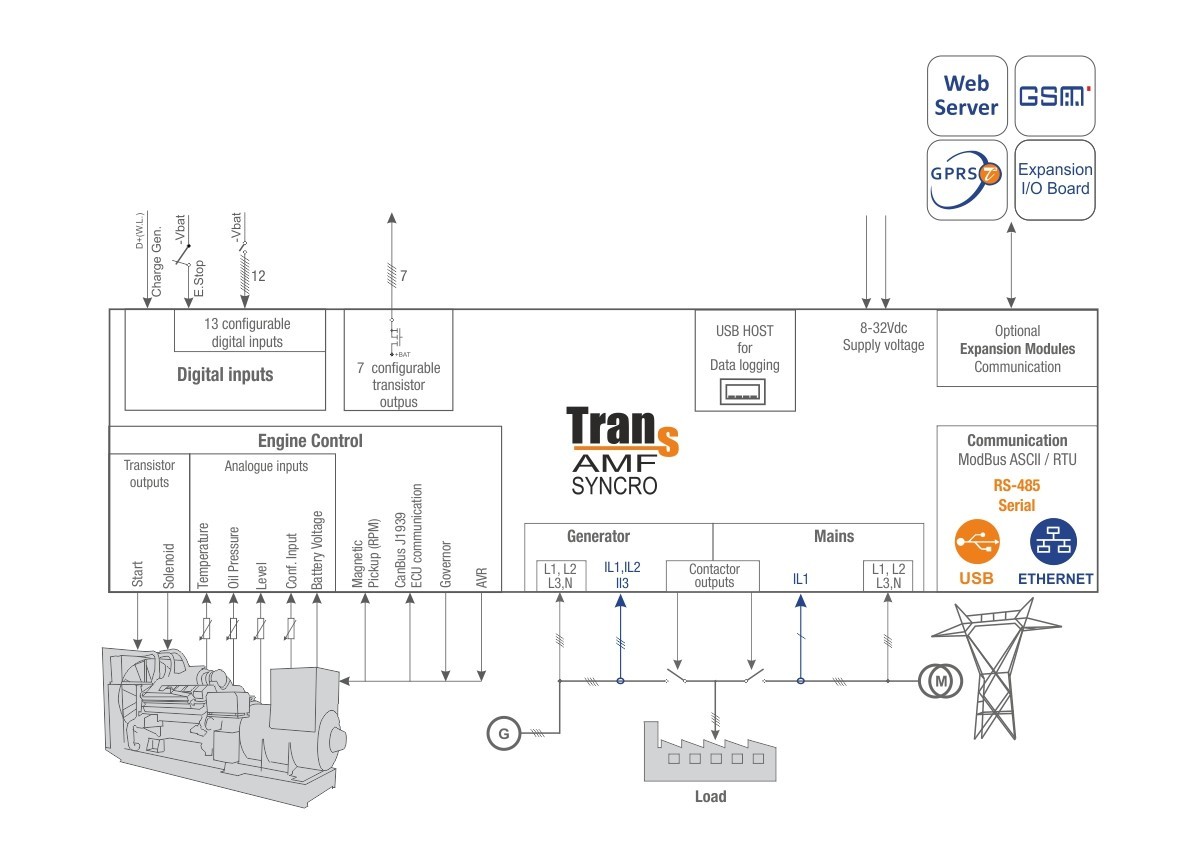

TRANS AMF SYNCRO
Automatic Gen-Set Controller with Transfer Switching & Load Sharing
Mains voltages and frequency measurements
Generator voltages and frequency measurements
Peak lopping (mains or genset)
Power export to mains
Mains de-coupling protection with R.O.C.O.F and vector shift methods
Manual voltage/frequency adjustment
Direct/Reverse Governor andAVRcontrol

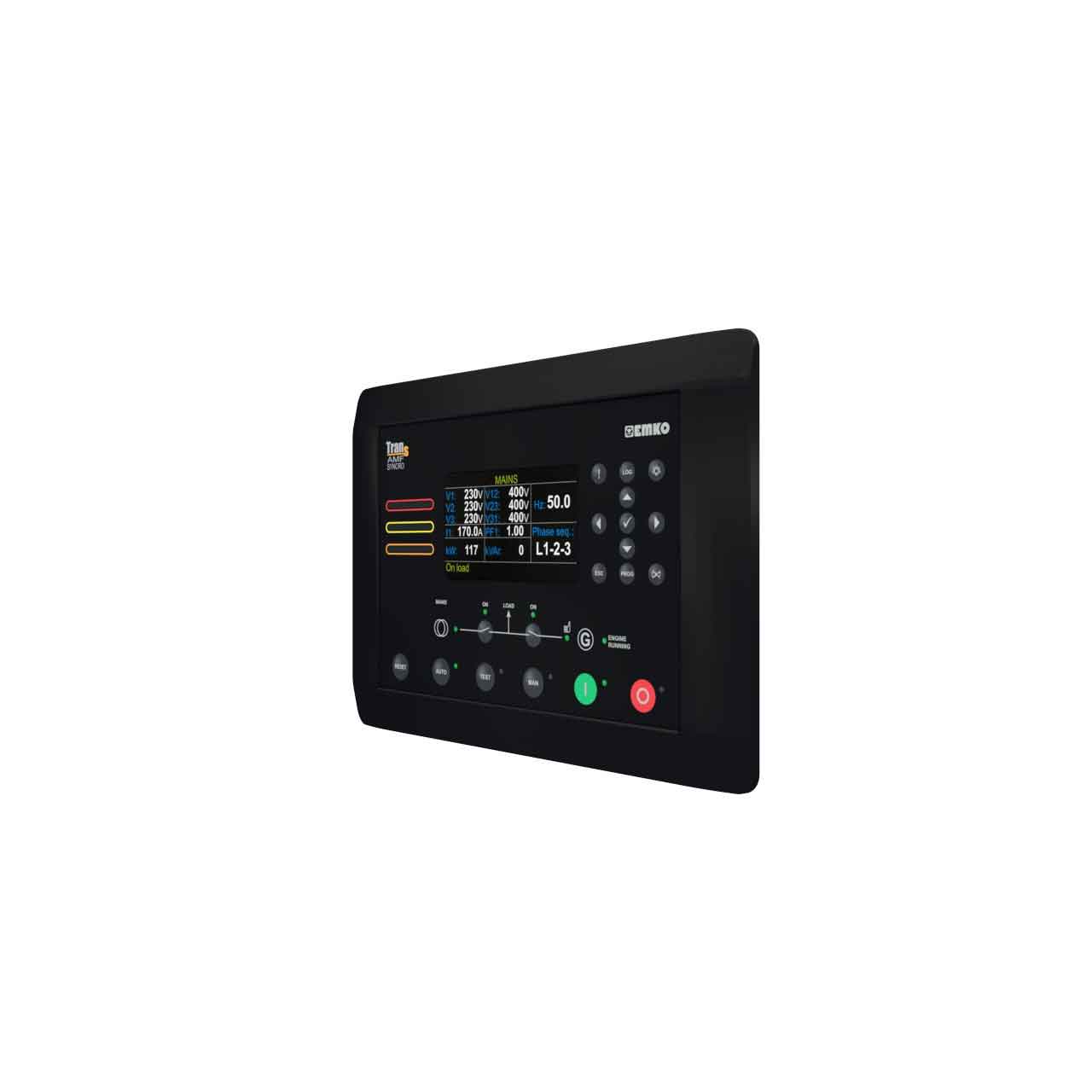

Synchroscope display
Logic Controller functionality for PLC
