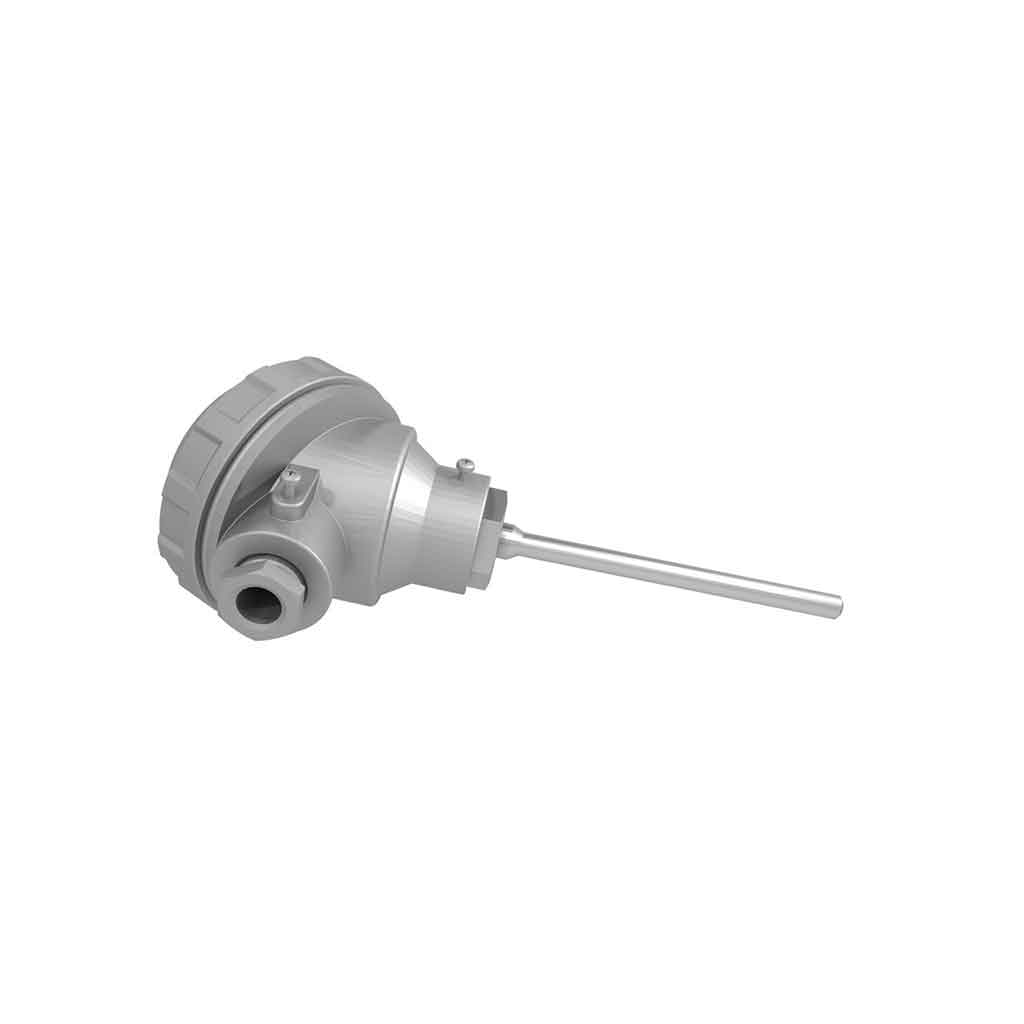

(TCKM) Mineral Isolated / (TCKMT) Head Inside Transmitter, Mineral Isolated

“K” type Themocouples

Description
Features Descriptions
Max. operating temperature 1200°C
Diameter Standard 3/6 mm
Standard cable types
Standard cable length
Sensor type DIN/IEC-584 “K” Ni-CrNi E= K
Protection tube material AISI310 Stainless steel
INCONEL Stainless steel
“INCONEL” is added to order code for INCONEL
Connector
Fittingnut (TCKRM and TCKRMT type) ½” fittingnut is used for standard production
Transmitter (TCKMT and TCKRMT types)
4…20mA current output, serial connection (Loop Powered) transmitter.
F= Calibration scale must be described on ordering.
