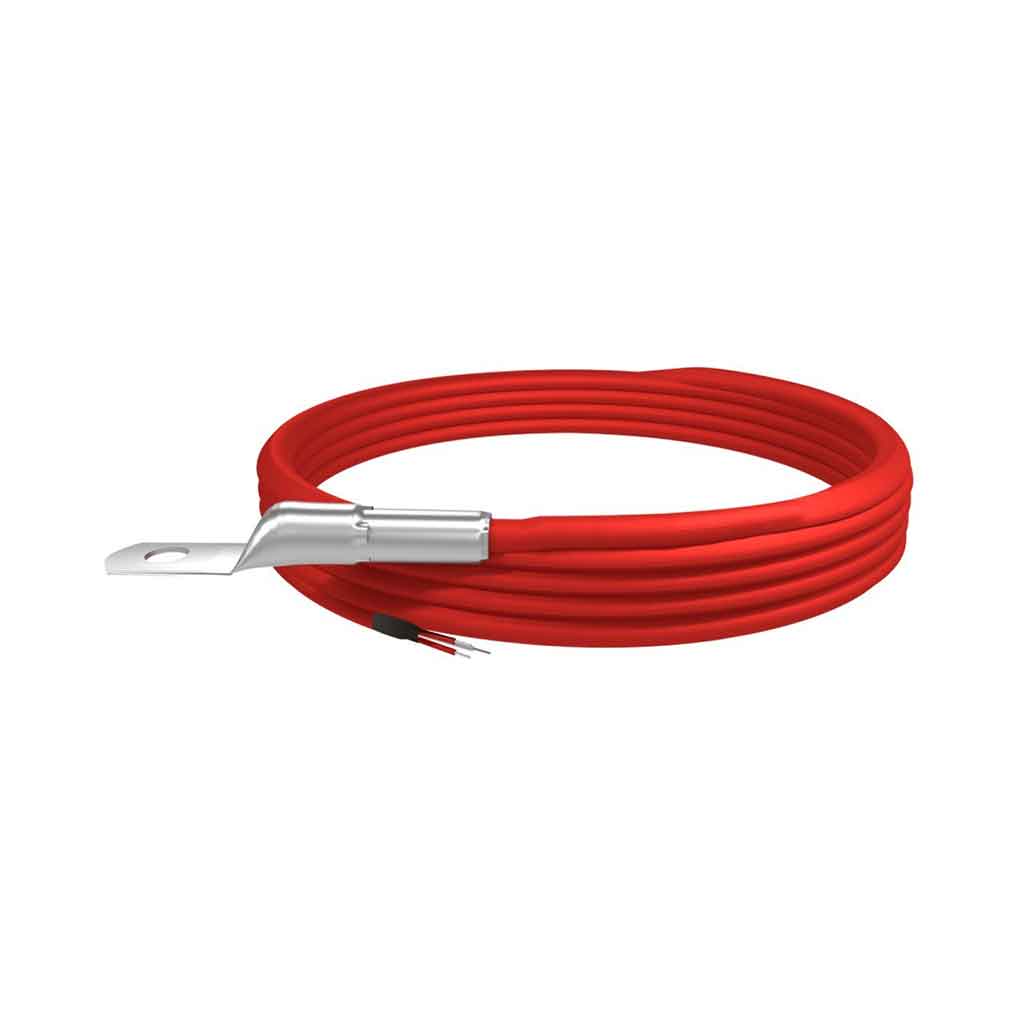

(RTSKP5) Bayonet Type with Cable Lug

Features	Descriptions
Max. operating temperature	200°C for silicone
Diameter	SKP5 (M5 Screw)
Standard cable types	Silicone + Silicone, 3x 0,22mm : “Si+Si” is added to order code
Standard cable length	K01 = 1 mt, K02 = 2 mt, K03 = 3 mt, K04 = 4 mt, K05 = 5 mt
Sensor type	DIN/EN60751Class “B” 1xPt-100
Protection tube material	AISI304 (DIN1.4301) AISI316 Order Code ‘‘316’’
Connector
Fittingnut
Transmitter
