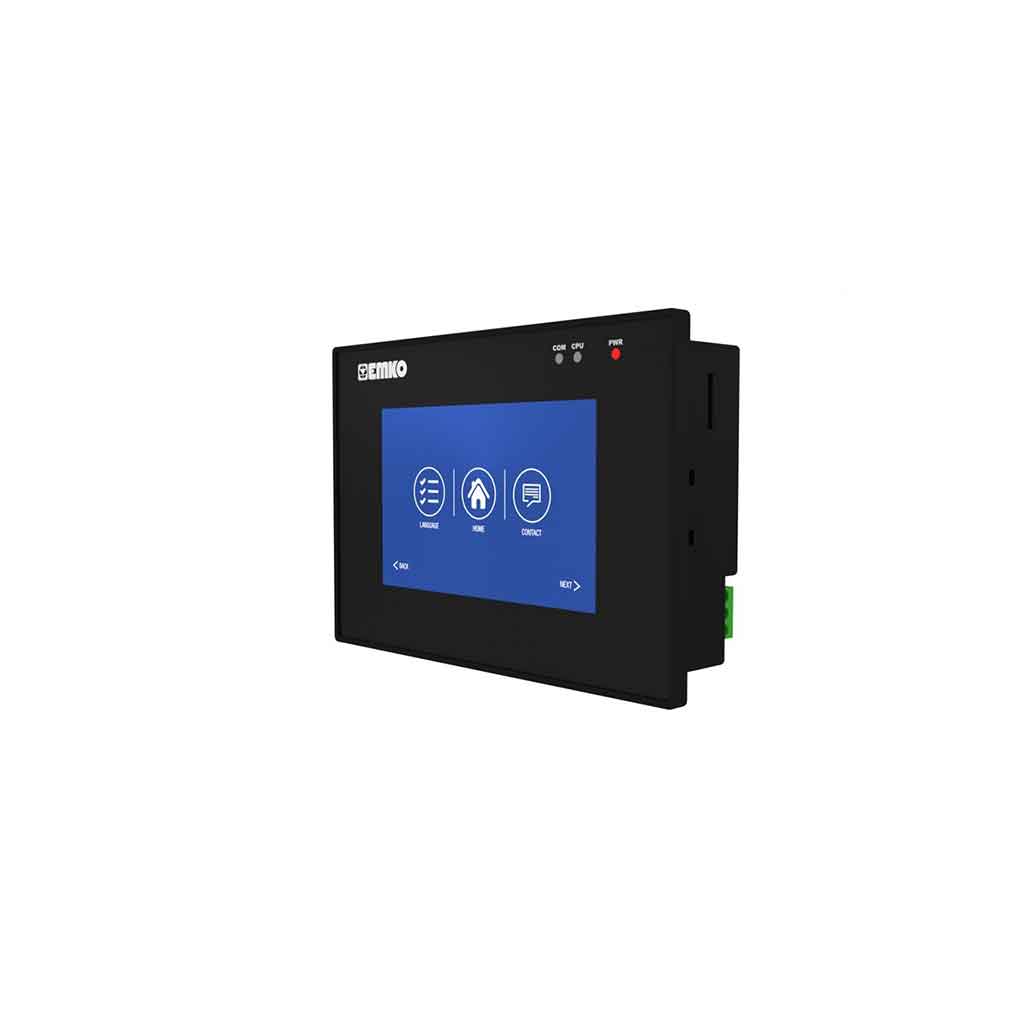

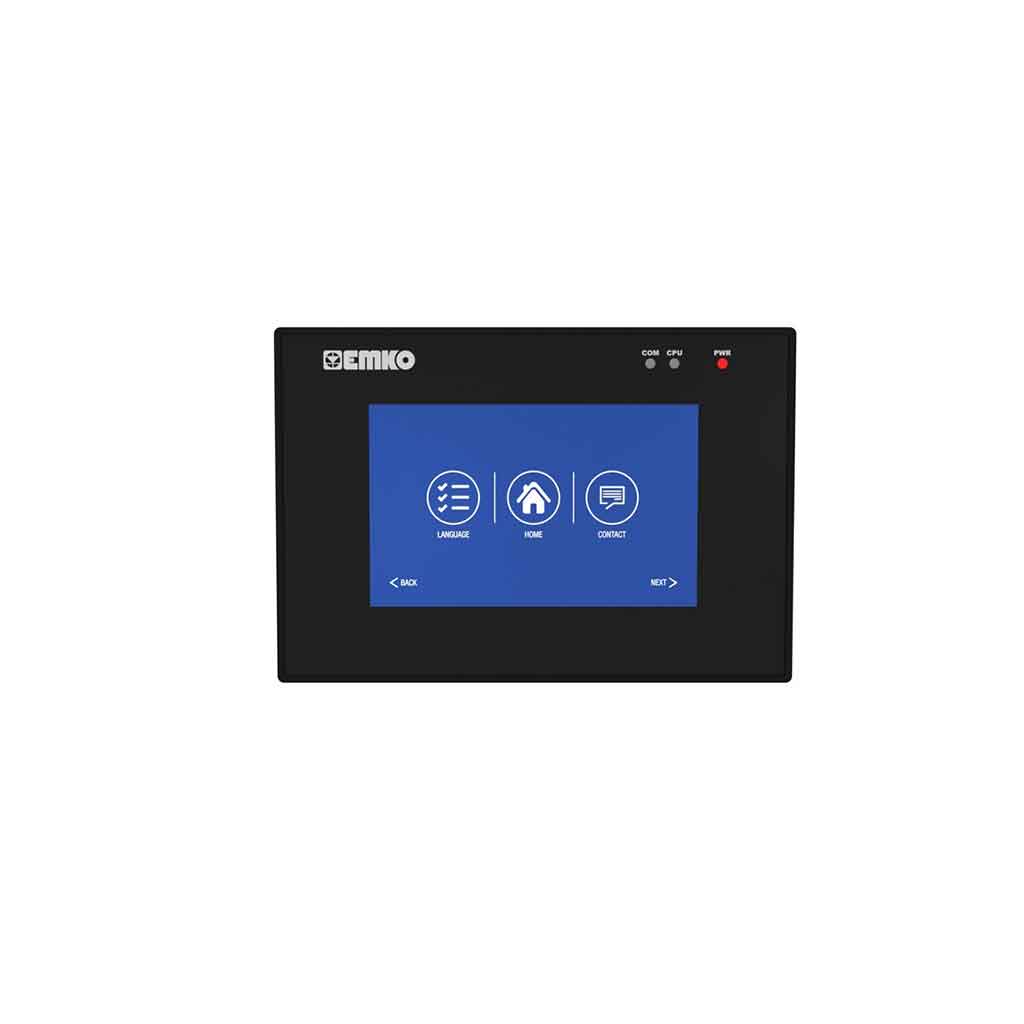

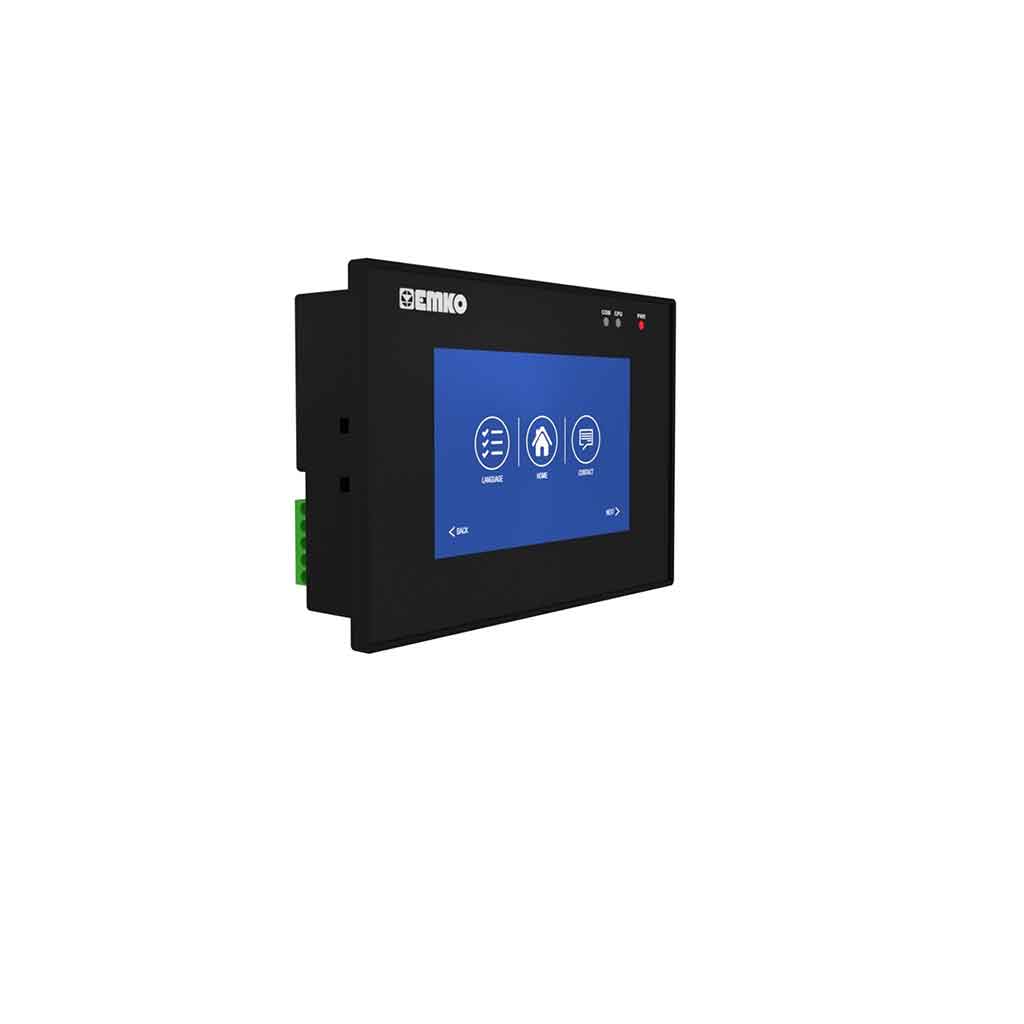

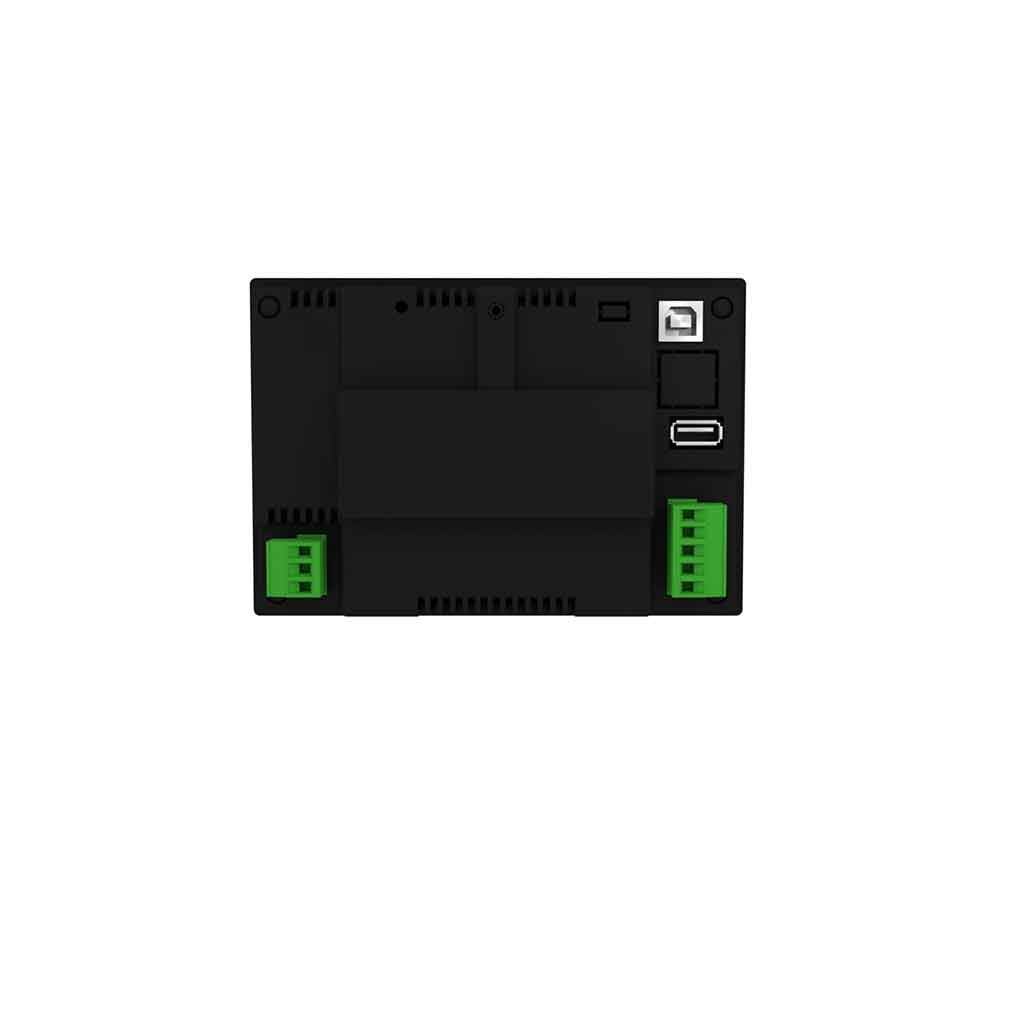

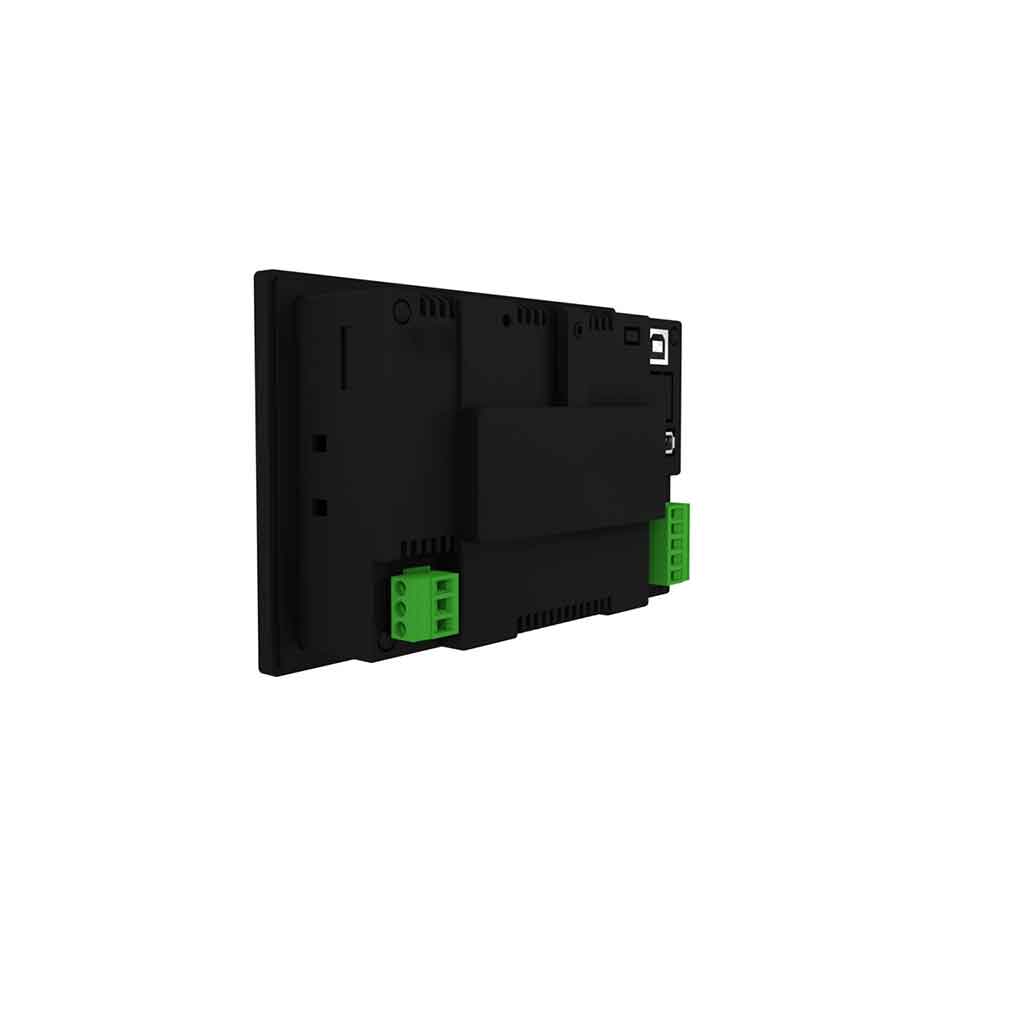

Proop Black 4 Eco

4,3 inch Professional Operator Panel

4,3″ boyutlarında yüksek çözünürlüklü TFT LCD ekrana sahip,
RS-232 ve RS-485 haberleşmeli, HMI Panellerler

User Manuals Brochures

Features	Descriptions
Graphics / Visual Features
Display Type	4.3 inch TFT
Display colors	260K color
Resolution	480×272
Storage / Operating Temperature	-40 ºC with +85 ºC / 0 ºC with +50 ºC
Physical Features	90 % max. (None condensing)
Dimensions	153 mm x 105 mm 50 mm
Panel section	143 x97 mm
Weight	Approximately 350g
Technicial Specifications
Digital Inputs	None
Digital Outputs	None
Analogue Inputs	None
Analgoue Outputs	None
Serial Communication-2	RS-485 (Terminal) Maks. Hız : 57600
Serial Communication-3	RS-232 (Terminal) Maks. Hız : 230400
Serial Communication-4	None
MCU	ARM Cortex-A Series
Flash Memory	8GB eMMC
RAM	512 MB DDR3 SDRAM
Buzzer	None
USB Device	1 x USB 2.0
USB Host	1 x USB 2.0
Optional Communication	Wi-Fi (IEEE 80211 b/g/n), Ethernet (10/100 mbps full Duplex)
Communication Protocols	Modbus-RTU, Modbus-ASCII, Modbus-ASCII (Slave), Modbus-RTU (Slave)
Approvals	CE , EAC
