| Features | Descriptions | |
| Graphics / Visual Features | ||
| Display Type | 10.1 inc TFT | |
| Display colors | 16M color | |
| Resolution | 1024×600 | |
| Storage / Operating Temperature | -20 ºC with +60 ºC / 0 ºC with +50 ºC | |
| Physical Features | 90 % max. (None condensing) | |
| Dimensions | 278 mm x 200 mm 50 mm | |
| Panel section | 265 x186 mm | |
| Weight | Approximately 1300g. | |
| Technicial Specifications | ||
| Digital Inputs | 5 | |
| Digital Outputs | 4 | |
| Analogue Inputs | 2 x 4…20mA | |
| Analgoue Outputs | 2 x 4…20mA | |
| Serial Communication-2 | RS-485 (Terminal) Maks. Hız : 57600 | |
| Serial Communication-3 | RS-232 (Terminal) Maks. Hız : 230400 | |
| Serial Communication-4 | RS-232 (DB-9 socket) | |
| MCU | ARM Cortex-A Series | |
| Flash Memory | 8GB eMMC | |
| RAM | 512 MB DDR3 SDRAM | |
| Buzzer | Build in >=85 dB | |
| USB Device | 1 x USB 2.0 | |
| USB Host | 1 x USB 2.0 | |
| Optional Communication |
Ethernet (10/100 mbps full Duplex) | |
| Communication Protocols | Modbus-RTU, Modbus-ASCII, Modbus TCP/IP, Modbus-ASCII (Slave), Modbus-RTU (Slave), Modbus TCP/IP (Slave), ISOTCP (S7-300 , S7-400, S7-1200, S7-1500), BACNET MS/TP, BACNET IP | |
| Approvals | CE , EAC | |

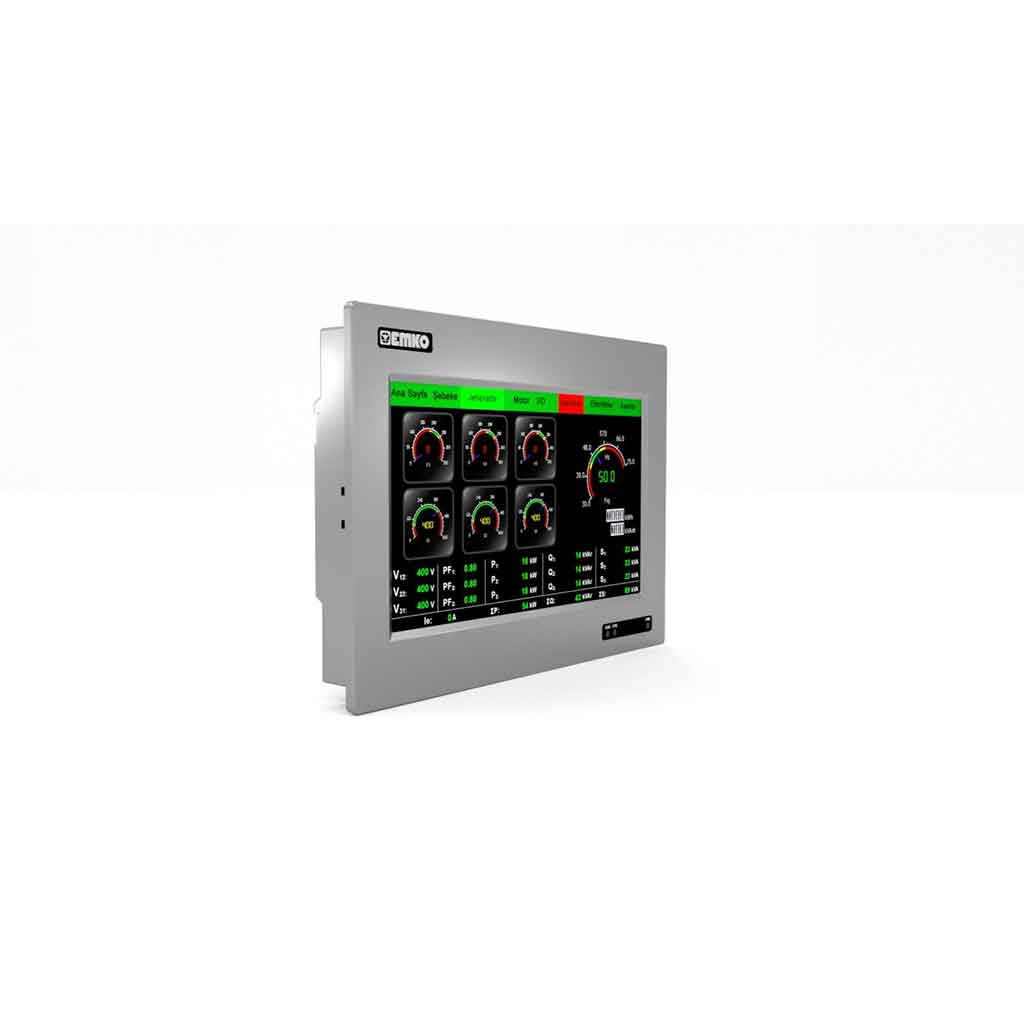

Proop 10.1 Process
10.1 inch Professional Operator Panel
10.1 “high resolution TFT LCD display
Internal digital input / output and analog input / output features
Ethernet, RS-232 and RS-485 communication
2nd Ethernet input
Process monitoring / control
Remote monitoring / control
DOCUMENTS
Description
Related products
HMI Panels with Internal Analogue & Digital Inputs/Outputs
