| Features | Descriptions |
| Dimensions | 96 mm x 96 mm 87.5 mm. |
| Protection Class | (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0…50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 24 Vac (-%15)+%10) 50/60 Hz.3VA 115 Vac (-%15)+%10) 50/60 Hz.3VA 230 Vac (-%15)+%10) 50/60 Hz.3VA |
| Sensor Inputs | ”J” Fe-CuNi, ”K” NiCr-Ni, ”R”Pt13%RhPt ”S”Pt10%RhPt Pt-100 |
| Optional Sensor Inputs | |
| Scale | Fe CuNi -200°C…900°C NiCr,Ni -200°C…1300°C Pt13%RhPt 0ºC,1700ºC Pt10%RhPt 0ºC,1700ºC PT 100 -200°C…650°C |
| Accuracy | ± 0.25% of scale for thermocouple and thermoresistance |
| Output | |
| Relay Output | Temperature Output: 5A@250 Vac at resistive load Time Output: 5A@250 Vac at resistive load |
| SSR Output | Temperature Output: Max. 10 mA@17Vdc Time Output: Max. 10 mA@17Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | ON/OFF, P, PI, PD, and PID |
| Reading Frequency | 3 readings per second |
| Communication Protocols | |
| Approvals | CE, EAC |

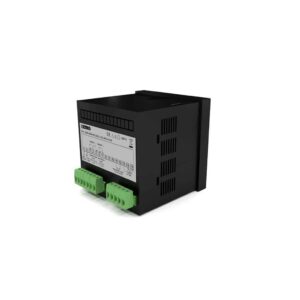

ESM-9944-N
Cooking Controllers
Programmable ON/OFF, P, PI, PD, and PID control types
Adaptation of PID coefficients to the system by
Auto Tune / Self Tune
Ease of Use with Single Display and Port
4 digits display
Process input (TC,RTD)
J,K,R,S Termokupl and
2 or 3 wire Pt100 input
Adjustable Process Offset Value
Working time selection in minutes or seconds
Audible alarm by internal buzzer
Door switch input
