| Features | Descriptions |
| Technical Features | |
| Supply Voltage | 24Vdc ( ±%20) |
| Power Consumption | 1,5W |
| Communication Port | 1x RS-485 |
| Program Installation/Configuration | 1x USB (Mini USB2.0) |
| Inputs | 8x Digital Input |
| Response Speed | 20μsn |
| Maximum Current | 6 mA |
| Outputs | 8x (24Vdc@0,3A) |
| Reaction time | 170 μsn |
| Operating Temperature | -10°C…+60°C |
| Storage Temperature | -20°C…+70°C |
| Mounting Type | Rail Mounting |
| Approvals | CE |

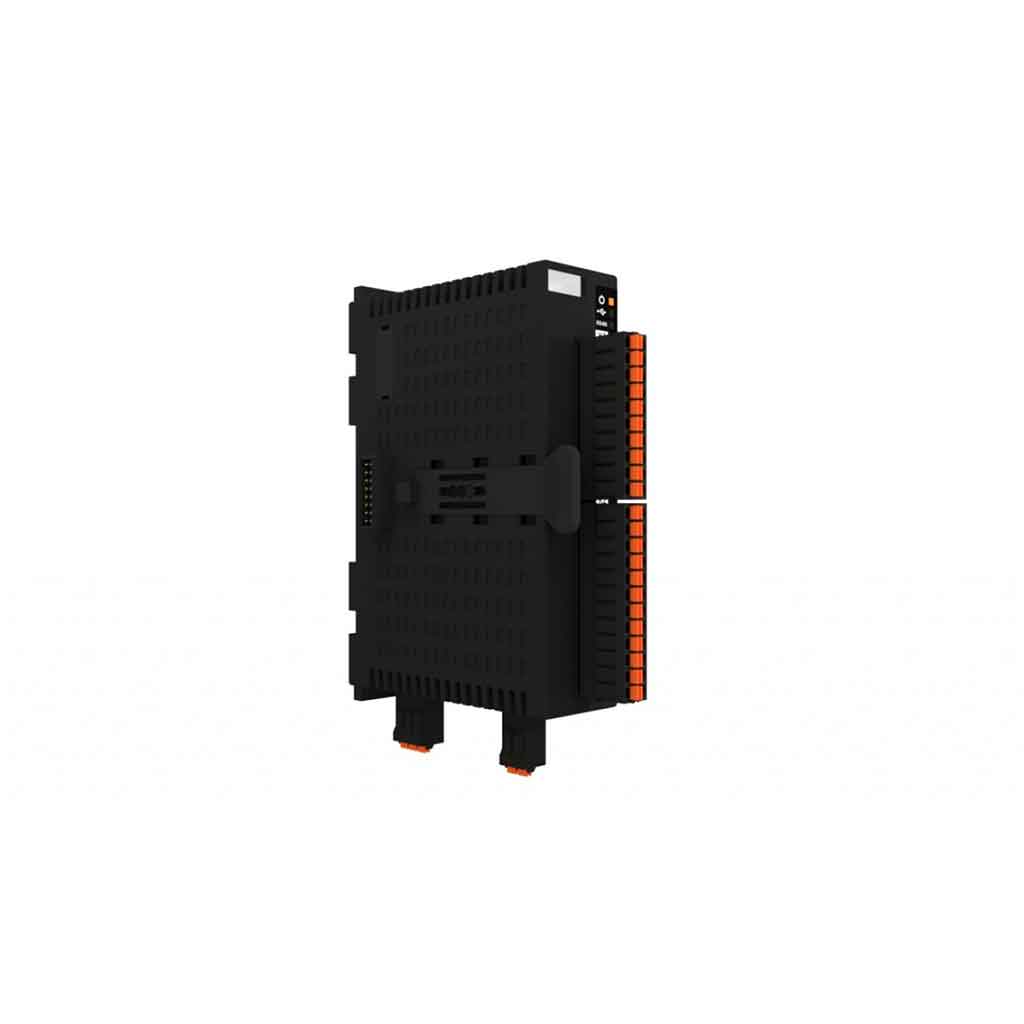

Digital I/O Modules
8x Digital Input
8x Transistor Output Module
Compatible with Modbus RTU (RS-485) Master devices,
8x Digital inputs,
8x Transistor output,
Mini USB-USB2.0 (Software Download/Configuration),
Modular Connection (Maximum 16 devices),
Snap-in type terminal,
25mm width.
